Mvltiplex

efsk

Sky high and six thousand miles away
Moderator
Actually five blades, but only sharpened on one side.
For years I've been yearning after a Mvltiplex razor. Saw a few pictures, and just knew I needed one. Preferably, one with a dome to store it in.
Fascinating razor really, multiple blades in a complicated construction: blade-plate-blade-plate and so on, with really tight tolerances that made producing these rather expensive: apparently, so I've read, not everything fitted right, so a lot of production-loss. I have one handle that just will not fit right, kind of proves it. This made the razor not the biggest success, although it was marketed internationally and advertising claimed folk like Marconi had one. Kind of amazing he didn't have a mustache.
Handles are either simple or decorated, thin or thick, apparently eight different types exist. I've three: two models, one of them in silver and in gold. Topcap is either smooth or has an integrated nut with which it can be fastened to the base of the above mentioned dome. There should be a three-blade-version as well.
Patented by mr Pelizzola, 8 nov 1928 in Italy, 1930 in Germany and Switzerland,
Please, Log in or Register to view URLs content!
.

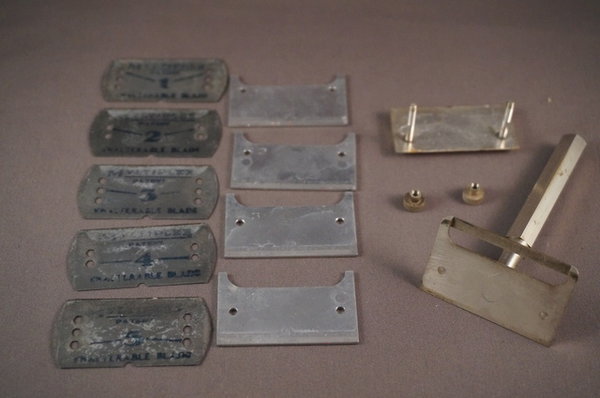

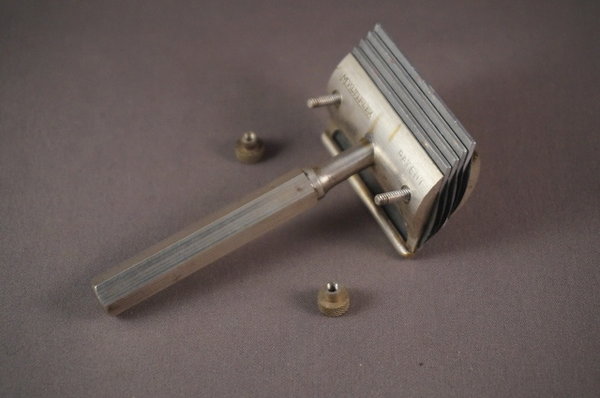

My first one arrived despite some DHL-difficulties. Looks like Nickel, a Potemkin Stairway of a razor. Five blades, each of which stepped backwards from the previous one. Two thin bolts with nut underneath. Blades and plates are numbered, Blades have multiple holes, and black arrows pointing to the right hole for its position. This way they only had to produce two types of blade instead of five. (Dis)Assembly shows how tight everything fits. There really is no room for just the slightest error.Baseplate is attached to the handle, bolts to the topcap.

DSC01659.JPG DSC01660.JPG DSC01661.JPG DSC01662.JPG DSC01663.JPG DSC01664.JPG DSC01665.JPG DSC01666.JPG DSC01667.JPG DSC01668.JPG DSC01669.JPG DSC01670.JPG


efsk

Sky high and six thousand miles away
Moderator
Then my second Mvltiplex came. This one had a few trackingissues with DHL, was delivered correctly however.

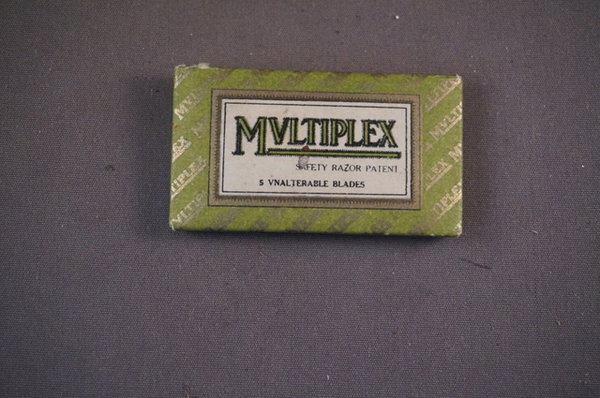

Razor arrived in original shipper, which confuses me: the razorbrand is Mvltiplex. It says so on the razor, on the blades, on the NOS bladepack that came with it. The shipper however calls it a Multiplex, which according to Waits' Compendium is an entirely different brand.

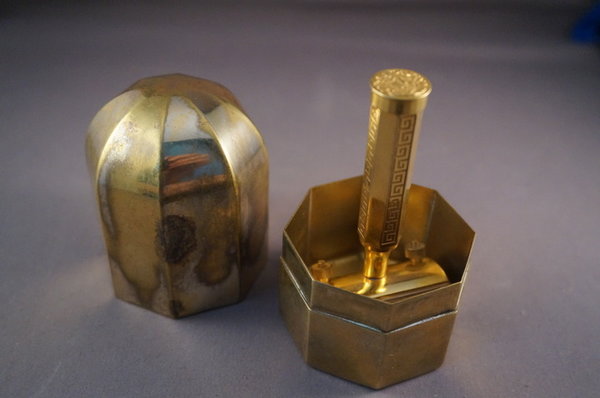

The shipper is rather thick cardboard, stapled together, with English text. When you open it, a brass dome appears. Wiggling a bit, and the top comes off: a gilded razor shows itself, upside down, screwed onto the base.

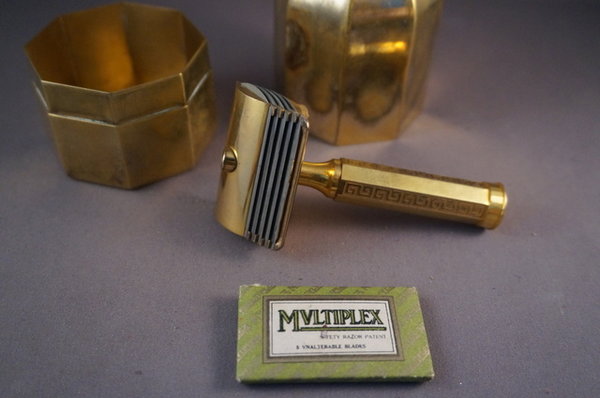

Some careful turning, and there the razor is, in all its fabulous gold sheen. Fat handle, decorated, Medusa-head on the bottom. Bascally like the razor in the threadstarter, except the basepate is a seperate plate, not attached to the (simpler) handle. Like mentioned before: the topcap has a built-in (built-on) nut, that you use to screw it onto the dome-base. According to the instructions, of which I got xeroxes, storing in the (closed) dome is for travelpurposes only.
DSC02658.JPG DSC02659.JPG DSC02660.JPG DSC02661.JPG DSC02662.JPG DSC02663.JPG DSC02664.JPG DSC02665.JPG DSC02666.JPG DSC02667.JPG DSC02668.JPG DSC02669.JPG DSC02670.JPG DSC02671.JPG DSC02672.JPG DSC02673.JPG DSC02674.JPG DSC02675.JPG


efsk

Sky high and six thousand miles away
Moderator
The two above Mvliplexes came with a number of spare parts. Sufficient to build a third razor. This has the Medusa--handle in silver, with OC-baseplate.
DSC02698.JPG DSC02699.JPG DSC02700.JPG DSC02702.JPG


gvw755

Well-Known Member
Shouldn't this be under the multi-blade razor section? :confused

If given the choice to shave with this or a Gillette Fusion, I'm not sure which I would choose.


efsk

Sky high and six thousand miles away
Moderator

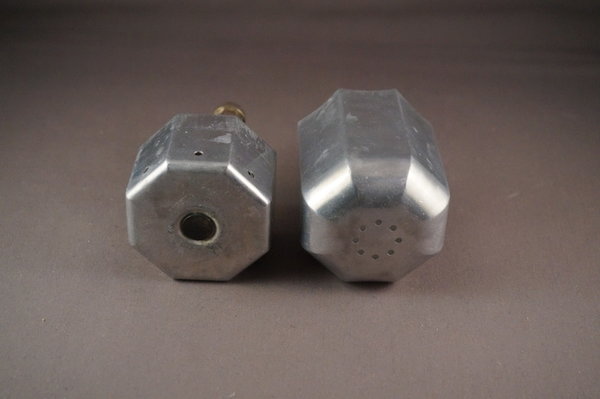

Found another one, this one, too, in a dome. The dome itself is aluminum, with nice curves along the bottom of the top-part. The basepart is just too tight: the razor won't turn nicely when screwing it in or out, and when screwed in, it is just a bit tilted. Dome is nicely perforated, I suspect for drying but may be decorative as well.
Razor itself came to me with only blades 1 and 3, and the interesting, to me, thing is these are different model blades than those with the earlier shown models Mvltiplex. Handle, too, is different: it is a fat handle with a simple knob. Other than the Medusaheaded handles, this one has the baseplate (plate 5) integrated, as has the thin handle that started the thread.
DSC03971.JPG DSC03972.JPG DSC03973.JPG DSC03974.JPG DSC03975.JPG DSC03976.JPG DSC03977.JPG DSC03978.JPG DSC03979.JPG DSC03980.JPG DSC03981.JPG DSC03982.JPG


gvw755

Well-Known Member
This razor always amazes me! Did you ever shave with any of yours? Seems that this would be perfect for someone wanting to transition from a multi blade Gillette Fusion.


efsk

Sky high and six thousand miles away
Moderator
A to me new model is this Mvltiplex. Same aluminium dome as the previous one, but this razor only has one screwpost, near the handle. This means it also needs a guidingpost, of which it has two, and a different model blade than the two types shown before. And indeed: rectangular blades with three holes, a unique blade per position. Time (I think) has blackened the blades, so am not sure if they're numbered, but they all have one logical position. Plates between the blades have been too rigurously cleaned by a previous owner, and possibly because of that no number is visible there, either.
Will need to spend some time to make it Ooh! Shiney! again.
DSC05828.JPG DSC05829.JPG DSC05830.JPG DSC05831.JPG DSC05832.JPG DSC05833.JPG DSC05834.JPG DSC05835.JPG DSC05836.JPG


efsk

Sky high and six thousand miles away
Moderator
And another one, where I'm not sure how to convey my enormous enthusiasm about the piece to you. 1398 grams in weight, huge, all parts except the screws marked 17, although in the cap it's scratched instead of stamped, and the blades measure 16/8 a piece. Here it is: the unbelievable Mvltiplex Display Razor
DSC05817.JPG DSC05818.JPG DSC05819.JPG DSC05820.JPG DSC05821.JPG DSC05822.JPG DSC05823.JPG DSC05824.JPG DSC05825.JPG DSC05826.JPG DSC05827.JPG


efsk

Sky high and six thousand miles away
Moderator
Found it a bit difficult to maneuver under the nose. Also, when shaving the throat-area you must take care to not accidentally shave your nipples.
