The Wabbit - 3D printed SE razor

sɐǝɹpu∀

Well-Known Member
Another 3D printed SE razor is the "
Please, Log in or Register to view URLs content!
"
This razor for injector blades is a cooperation between Tom White (Head und V2 handle) and myself (V3 handle).
Cap, base and blade are held together by small magnets.
The files for both versions are available free of charge for non-commercial use:
Please, Log in or Register to view URLs content!

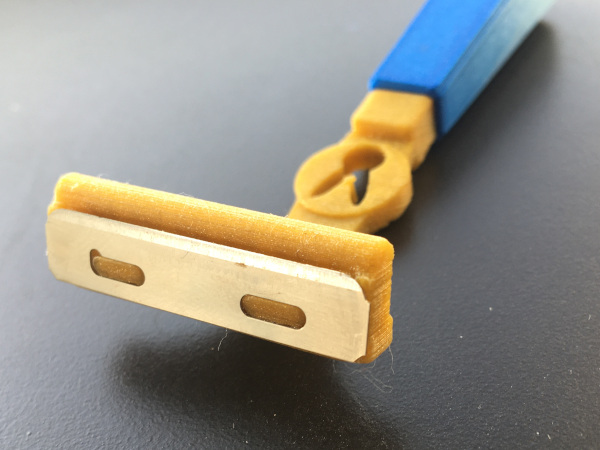

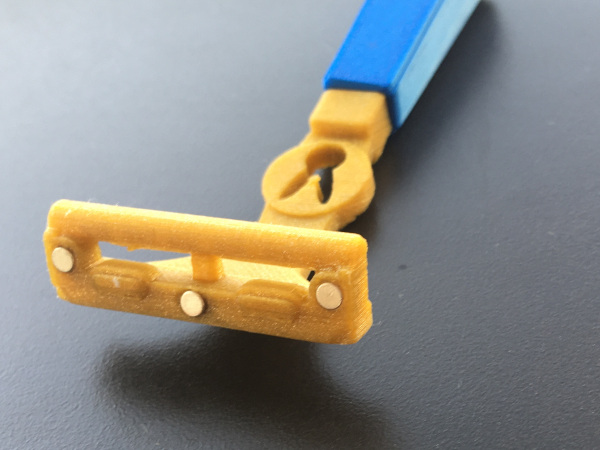

3D-printing is getting cheaper all the time. My yellow one (see below) cost less than 7 Euro shipped.

Version 2 has a simple straight handle:

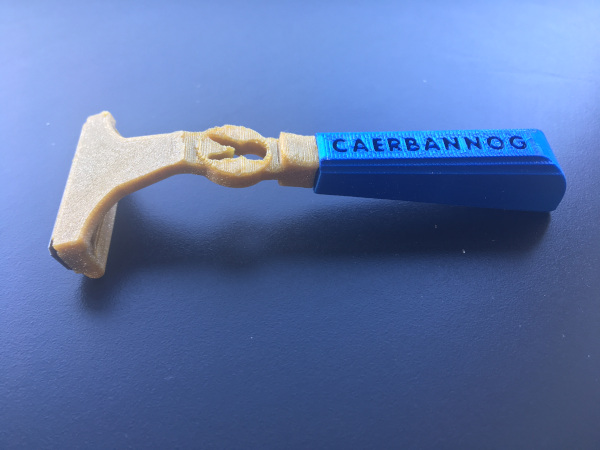

Tom then asked me to adapt my 'Enders-Speed-Style' handle:

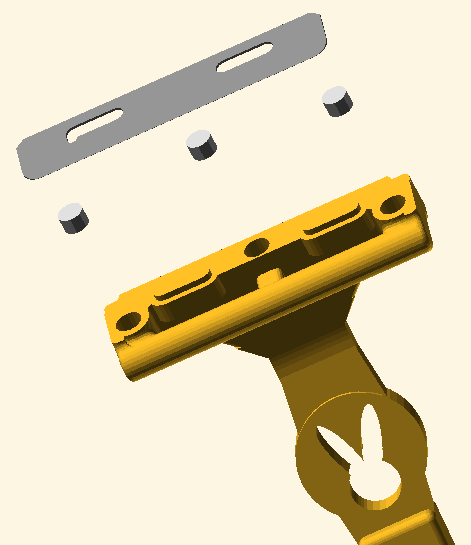

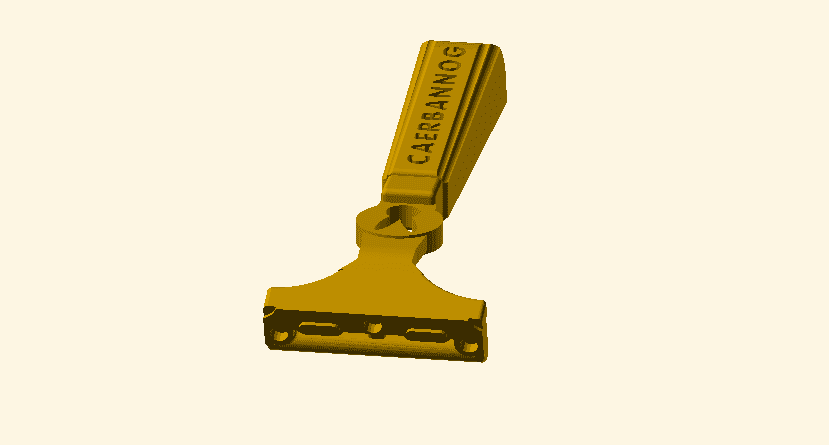

A little animation to show the head with the magnets:


Feedback from testers is quite positive. Personally, I think the blade angle is too steep. Even though the cap is very small it gets in the way. And it's so tiny it's fiddly.
That's why the next razor will have no cap at all - and a new handle - and it will probably be available as a slant.
3 magnets should do the trick.
Watch this space.

Last edited:

sɐǝɹpu∀

Well-Known Member
Please, Log in or Register to view quote content!

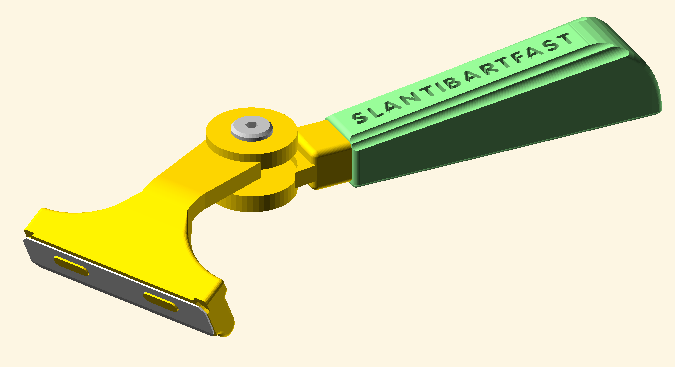

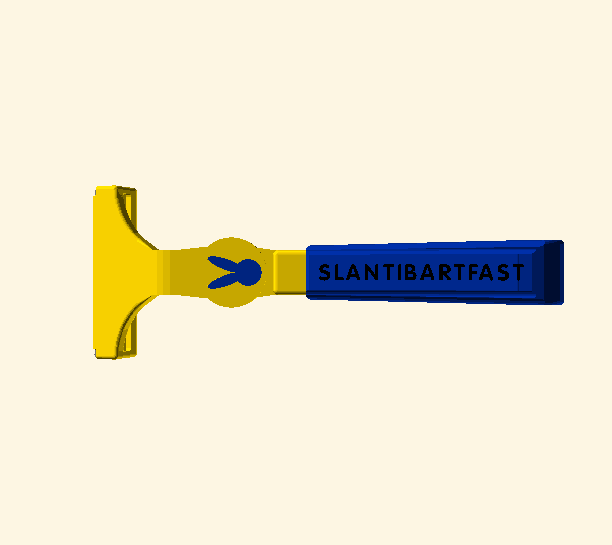

That's roughly where I'm going with this - subject to a lot of change:



gvw755

Well-Known Member
Hmmm... That mechanism looks a little too complicated.

I like the throwback to the early Schick handles! :daumenhoch


gvw755

Well-Known Member
Well, that round area also brings back that earlier Schick shape. Maybe the nut and bolt will hold better than the magnets. I would be interested in seeing the non slanting version. :daumenhoch


gvw755

Well-Known Member
Beautiful! When will this be loaded to the public domain site? It is kind of like the early Gem blade razors that left the blade exposed on top. :daumenhoch


sɐǝɹpu∀

Well-Known Member
Please, Log in or Register to view quote content!
Thank you. It won't be public domain, just free for non-commercial use. Give me a couple of days.
The handle is already available:
Please, Log in or Register to view URLs content!


And yes, the early capless Gem razors helped convince me that a cap is optional.
Seeing the blade "float on top" is unnerving at first, but I've had 3 shaves with it so far and you forget about the blade.
